Power Electronics

USB Charger Series

15W - 30W - 65W - 240W

Experience high-performance charging on the go with our automotive grade 65W USB car charger, built to meet the rigorous demands of modern vehicles. Designed for ultimate efficiency and compatibility, this charger supports all popular fast-charging standards, including USB PD 3.0 with PPS, QC 3.0, and Huawei FCP, ensuring seamless charging for smartphones, tablets, laptops, and more. With over 95% efficiency, it delivers rapid, reliable power while minimizing energy loss. Its smart power management system adjusts dynamically to provide optimal charging tailored to your device.

65W USB
20
  • Power options: 15W, 30W, 65W, 100W, 240W
  • USB 2.0/3.0/PD compatibility.
  • Simultaneous multi-port charging.
  • Overvoltage, overcurrent, and temperature protection.
  • Compact and dashboard-mountable design.
  • 9V – 36V DC input provides universal compatibility.
  • Automatic handshake with the charging device ensures safe charging for all devices.
  • Supports USB Data Transfer based on consumer needs.
  • Passenger vehicle infotainment
  • Public transit USB charging ports
  • Dashboard integration in buses, trucks

DATASHEET

ONE-PAGER

DOWNLOAD
DOWNLOAD

Power Electronics

Wireless Charger Series

The Saykal Wireless Charger Series delivers up to 25W wireless charging in compliance with Qi 2.2+ standards, supporting modern smartphones, earbuds, and smartwatches. With adaptive Foreign Object Detection (FOD), zero-voltage switching (ZVS), and high-efficiency power transfer, it provides an elegant, cable-free charging experience for automotive interiors. The series also features Magnetic Alignment for effortless device positioning, a multicoil architecture for a wider charging area, and NFC-based authorization for secure operation. Selected models include an integrated cooling fan to maintain device temperature during charging, enhancing both performance and longevity.

wireless with coil
  • Qi 2.2+ certified 25W output.
  • Compatible with MPP, EPP, BPP protocols
  • Adaptive FOD for safety
  • CAN-based control interface
  • Magnetic alignment compatable
  • Multicoil compatable
  • NFC authentication with security compatable
  • Device cooling fan compatable
  • Dashboard or seat-back integration options
  • In-vehicle wireless phone charging
  • Luxury cabin equipment in EVs
  • Commercial vehicle infotainment upgrades

USER GUIDE

ONE-PAGER

DOWNLOAD
DOWNLOAD

Battery Electronics

Battery Shunt Sensor Pro

(400V-800V Batteries, HV Batteries)

The Intelligent Battery Shunt Sensor (IBSS PRO) is based on Low TCR shunt resistor and high precision low tracing error  voltage divider allowing high bandwidth, high accuracy current and voltage measurements over a wide range of temperatures without the need for temperature compensation.

ibss1
ibss3
ibss2
  • High precision
  • Low TCR shunt resistor
  • Low thermal EMF
  • Redundant voltage measurement up to 1200 V
  • Continuous current rating up to 1800 A
  • Insulation resistance measurement
  • Functional safety level up to ASIL D
  •  Automotive and industry
  • Industrial and server computing
  • Networking, telecom, and base station power supplies
  • Battery management systems
  • EV test environment
  • Solar installations
  • Home automation

DATASHEET

DOWNLOAD

Battery Electronics

Battery Shunt Sensor

(400V-800V Batteries, HV Batteries)

The SAYKAL Battery Shunt Sensor provides precise current measurement and Intelligent Battery Sensor (IBS) functionalities for both low and high-voltage battery platforms. Ideal for 400V/800V electric vehicle battery monitoring. It is a key element in energy-efficient BMS design.

İBBSNEW
ibssnew3
ibssnew2
  •  High precision
  •  Low TCR shunt resistor
  •  Low thermal EMF
  •  Voltage measurement up to 1200 V
  •  Continuous current rating up to 1800 A
  •  CANFD interface
  •  Automotive and industry
  • Industrial and server computing
  • Networking, telecom, and base station power supplies
  • Battery management
  • EV test environment systems
  • Solar installations
  • Home automation

DATASHEET

DOWNLOAD

Seat Solution

Premium Seat ECU Family

Seating ECU + User Controller + Lamp + Gateaway

The SAYKAL Premium Seat ECU Family is a comprehensive system enabling control of every function related to passenger comfort and seating intelligence. Comprising modular components—Seating ECU, User Controller, Reading Lamp, and Gateway—it facilitates fully adjustable heating, cooling, lumbar support, lighting, and even mobile application connectivity. Built with FDCAN and Bluetooth/OpenThread support, it enables distributed and user-friendly interfaces in high-end and public transportation vehicles. This family represents a core solution for modern smart seating architectures.

seat ecu
  • Modular and distributed seat control
  • Independent heating/cooling/lumbar adjustment
  • User interface with illuminated buttons and app control
  • Integration with lighting and seatbelt logic
  • Full compatibility with CAN, FDCAN, and wireless comms
  • Premium automotive seating systems
  • Long-haul coach comfort control
  • Modular smart bus seating configurations

DATASHEET

DOWNLOAD

mmWave Radars

Seat Occupancy Radar Sensor / Door Obstacle Detection Radar

Saykal Ultra-Short Range Radar Sensor is suitable for automotive applications, especially for Occupancy Detection on the seats. The Seat Occupancy radar sensor operates in the millimeter wave frequency band, effectively detecting living objects on the seat. Unlike capacitive weight-measuring occupancy pads, it distinguishes between living and inanimate objects, reducing false alarms from non-human objects placed on the seat.

seatocc
seatocc2
seatocc1

  • High-precision seat occupancy detection

  • Automotive grade reverse polarity protection

  • Wide input voltage range (9-60 V)

  • RS485 or CAN communication interface

  • Dynamic and static object differentiation

  • Configurable Field of View up to 60°

  • Adjustable sensor angle and positioning

  • Customizable detection distance

  • Sensitivity adjustment for various seat types

  • Automotive Seat Occupancy Sensor

DATASHEET

DOWNLOAD

Battery Electronics

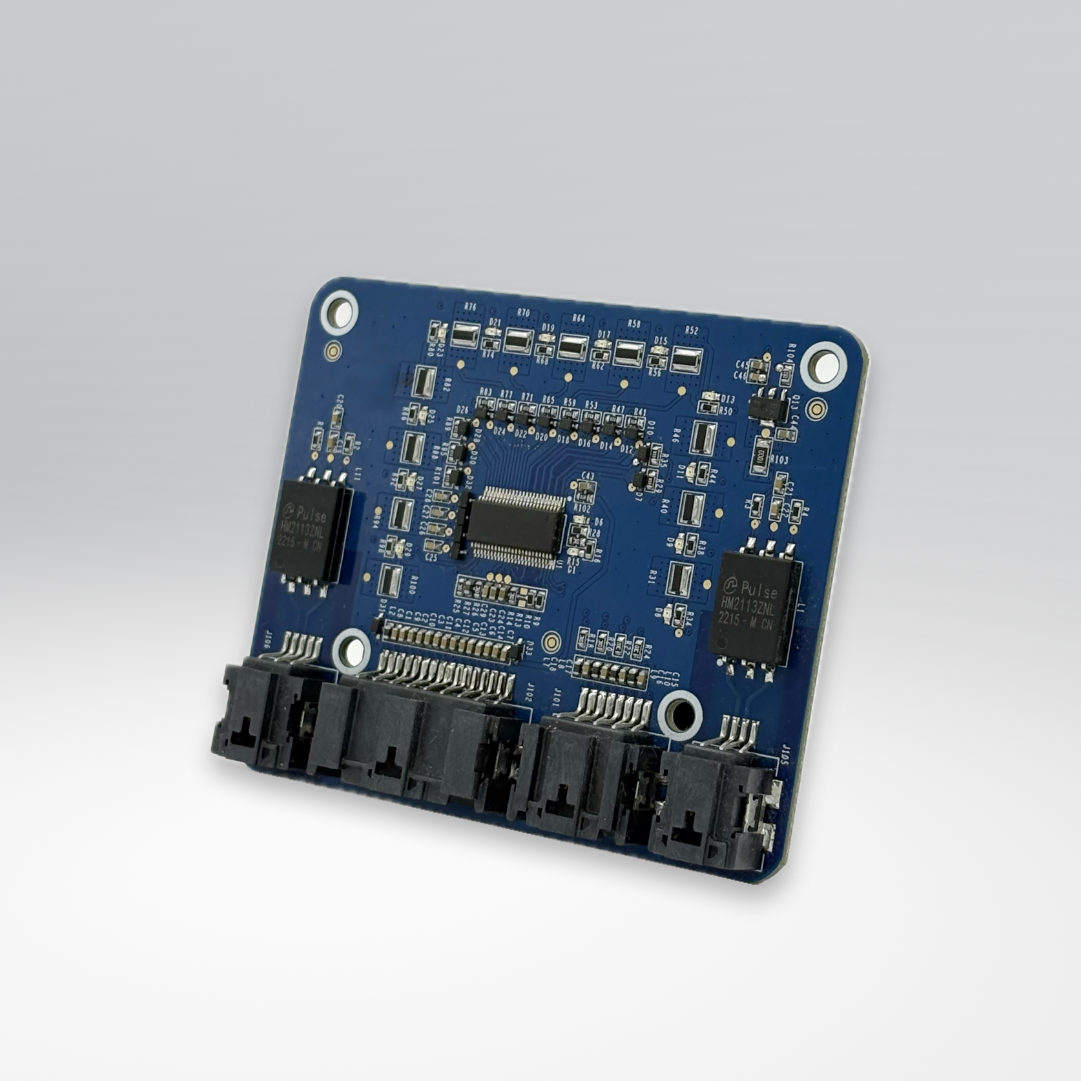

Battery CMU - Cell Monitoring Unit Sensor

SAYKAL’s Battery Cell Monitoring Unit (CMU) ensures individual cell-level voltage, temperature, and balance monitoring in multi-cell battery packs. It’s a foundational component of any high-voltage battery BMS architecture, enhancing safety and lifespan.

cmu1
cmu2
cmu3
CMU
  • Monitors voltage and temperature per cell
  • Ensures cell balancing
  • Communication with ISOSPI
  • ‡0.04% max error for individual cell voltage measurement.
  • Supports up to 18 series-connected battery cells.
  • Low power consumption in sleep mode.
  • Daisy chain communication (optional).
  • Electric vehicles (EV) battery management systems
  • Energy storage systems (ESS)
  • Industrial battery backup systems
  • Renewable energy storage solutions

DATASHEET

DOWNLOAD

Battery Electronics

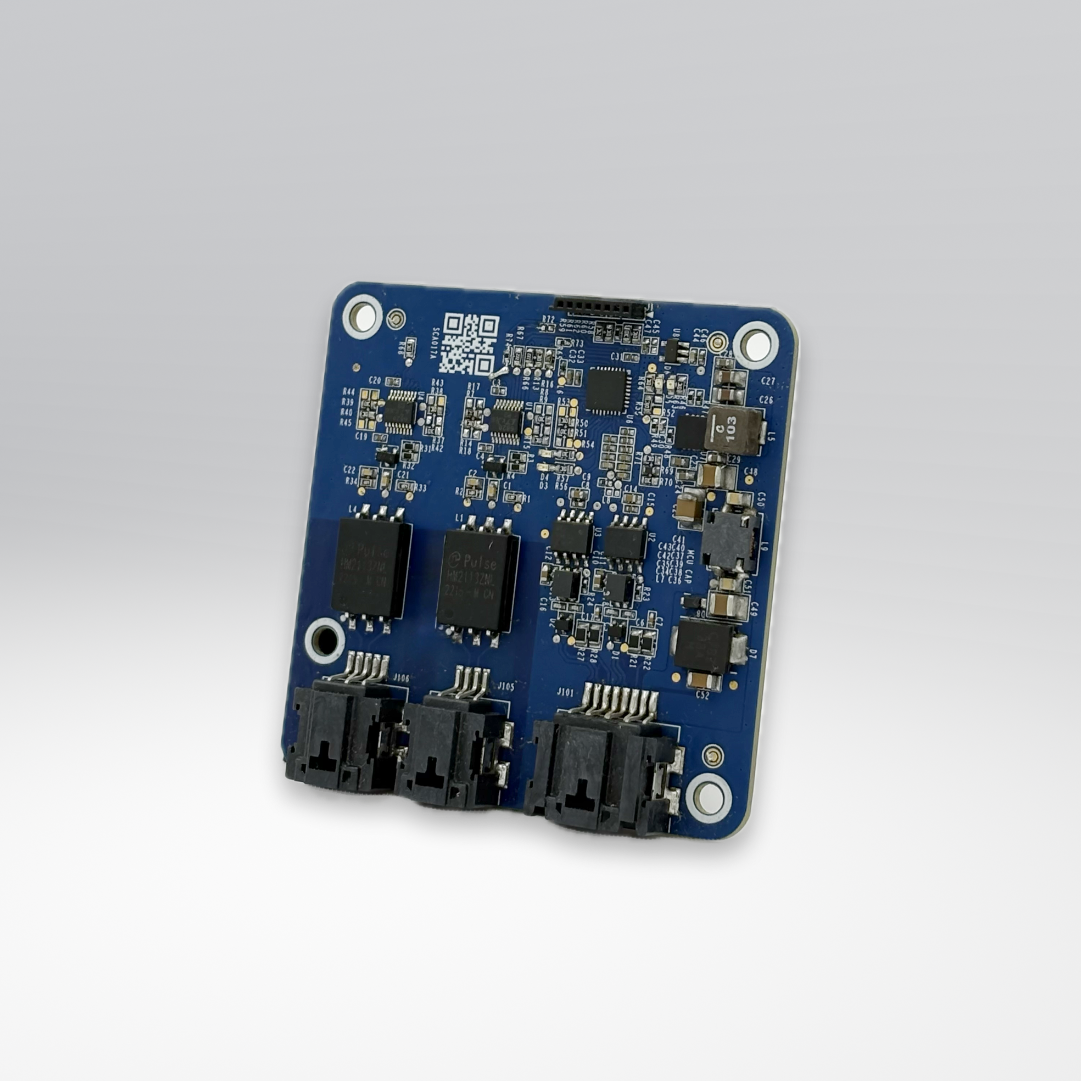

Battery Isolated IsoSPI CAN Converter Unit

(Battery Communication Unit)

SAYKAL’s IsoSPI-to-CAN Converter is a high-voltage isolation module that facilitates safe communication between battery cells/modules and BMS systems. Using the IsoSPI protocol, it ensures noise immunity and electrical protection in harsh EV environments. This converter is crucial for maintaining reliable communication in 400V–800V battery architectures, especially in multi-cell series designs where isolation is mandatory.

ısospı1
ısospı3
ısospı2
ISOSP

• Supports up to 32 CMUs (Cell Monitoring Units) over
ISOSPI
• Request & Response control with DBC over CAN Bus
• Auto sleep and wake-up control for CMUs
• Cell-based discharge control
• Open wire & error detection
• Hardware features
• 9 V to 60 V power supply
• CAN STD 2.0a interface
• Bidirectional ISOSPI (Optional)

• Electric and Hybrid Electric Vehicles (EV/HEV)
• Battery Management Systems (BMS)
• Isolated Communication with system & Energy
• Backup Battery Systems
• Electric Vehicles Test Environments

DATASHEET

DOWNLOAD

Sensors

Inclinometer, Tilt, Level Sensor

The SAYKAL Inclinometer offers multi-axis measurement capabilities, serving as a tilt sensor, level detector, and inclination sensor. It enables real-time monitoring of vehicle attitude, stability, and positioning. Engineered for commercial and construction vehicles, it supports digital communication via CAN, UART, or SPI. Its rugged design makes it perfect for construction equipment sensors and terrain-based stability control.

incilonemeter
incilonometerpcb
  • 2D/3D tilt and level measurement
  • High resistance to vibration and shocks
  • Wide operating temperature range
  • CAN/SPI/UART communication options
  • Compact and durable enclosure
  • Truck stability systems
  • Construction machinery and platforms
  • Off-road vehicle tilt sensing

DATASHEET

DOWNLOAD

ECU

Automotive Telemetry Control Unit

(CAN, 4G Communication ECU)

The SAYKAL Automotive Telemetry Unit provides robust vehicle data acquisition and remote communication via 4G LTE connectivity. Built for CAN-based vehicles, this ECU collects real-time operational data, stores it locally or transmits it securely to the cloud. With features such as GPS tracking, OTA firmware updates, and web dashboard integration, it’s essential for OEMs and fleet operators managing efficiency, diagnostics, and driver behavior. It forms the digital backbone of connected car and fleet intelligence platforms.

tcu7
tcu6
  • CAN bus data acquisition and 4G LTE cloud communication
  • Built-in GPS and real-time tracking
  • Secure data upload and encryption protocols
  • Firmware-over-the-air (FOTA) support
  • Web portal/dashboard API compatibility
  • Telematics-enabled fleets
  • Real-time diagnostics and predictive maintenance
  • Usage-based insurance (UBI) integration

DATASHEET

DOWNLOAD
