mmWave Radars
Blind Spot Information System (BSIS)

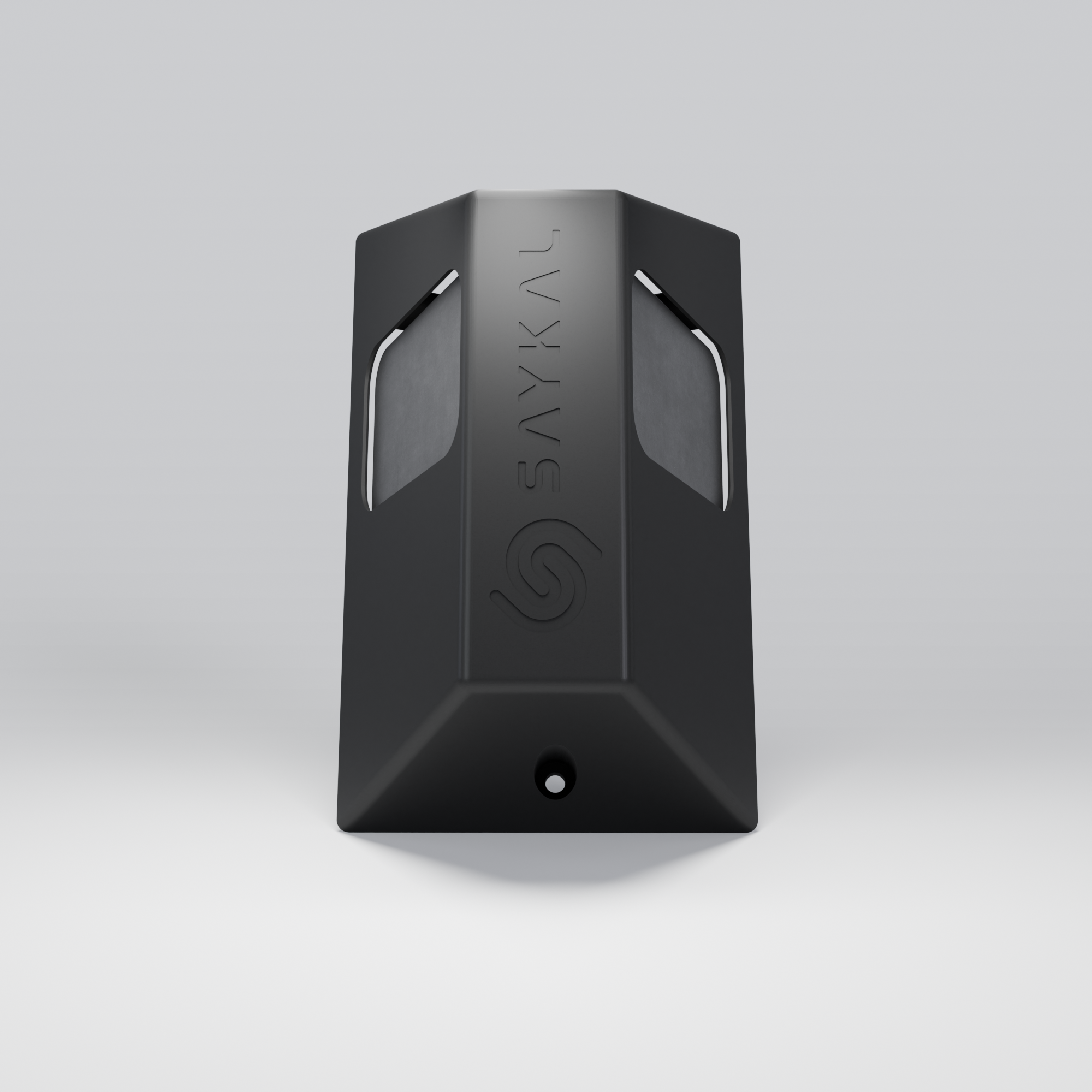

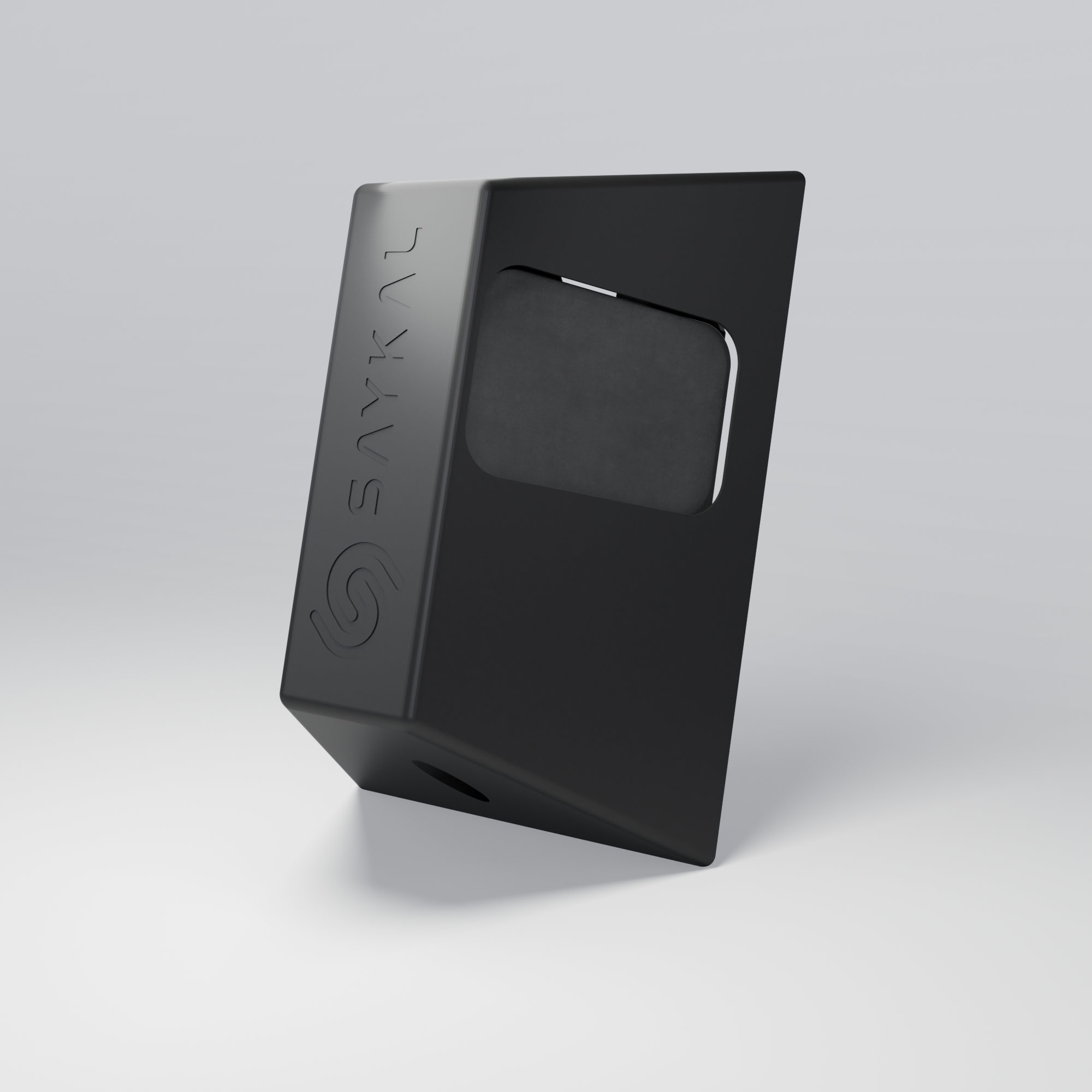

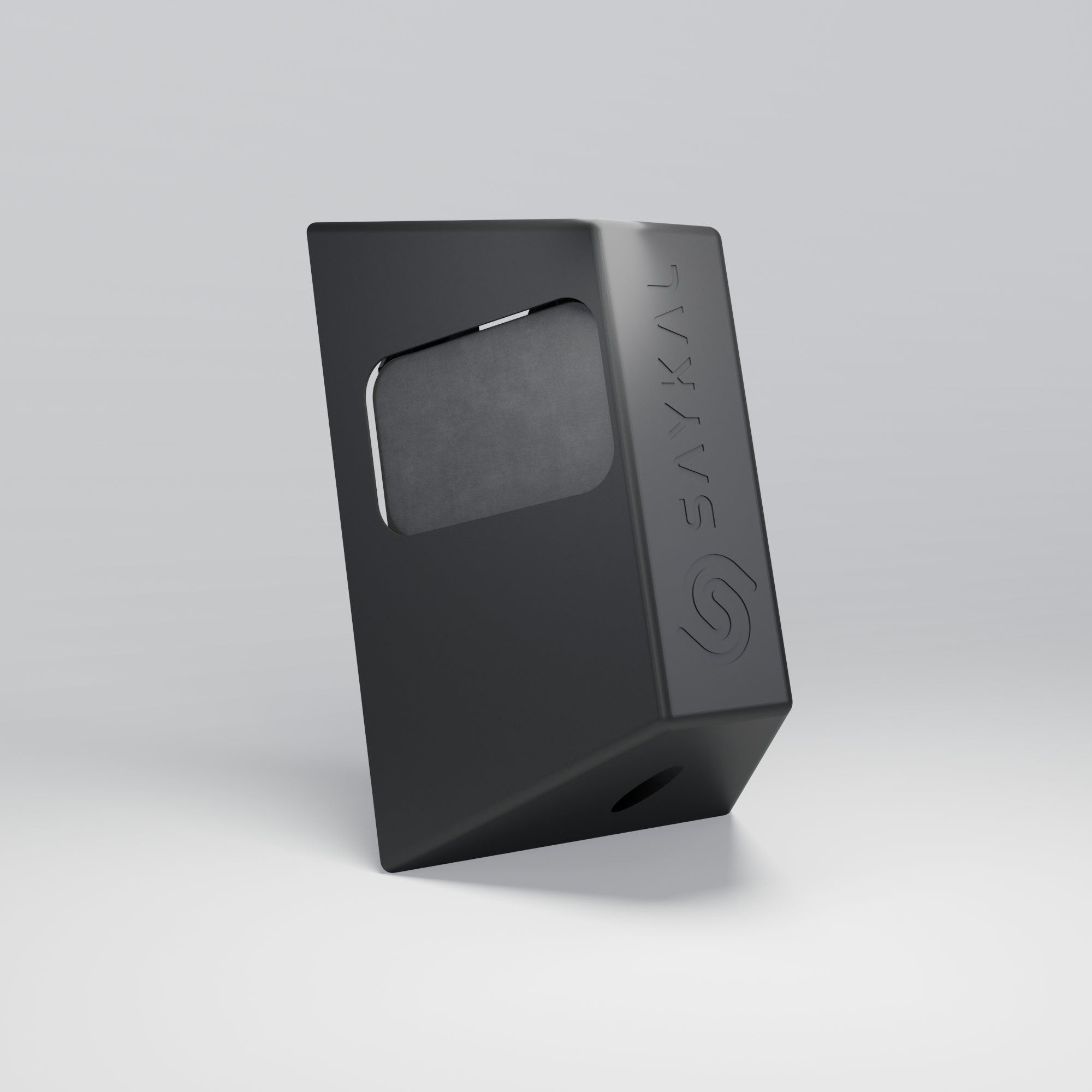

SAYKAL Radar Sensor; It is an innovative, robust, and reliable electronic sensing unit developed for the automotive industry and containing new-generation technologies. It is customized for out-of-cabin applications. AP003 is a high-performance short-range radar sensor operating in the 76-81 GHz band for various premium backward & forward-looking applications. Blind Spot Information System supports drivers in passing and lane change maneuvers to help avoid side collisions. When BSIS detects moving objects in the blind spot zone, the driver is cautioned with a visual and audible warning
Hardware Features
• 7V – 40V DC / 4.5A
• Reverse Connection Protection AUTOMOTIVE
• 16 Megabit extended storage / 64k FRAM Optimal Reliability
• CAN / FDCAN
• Temperature Sensing
• 2 x Output & 4 x Input
Software Features
• Firmware Update with CAN Bus
• High Precision
• SAE J1939 Support
• UDS Enabled
• Object Detection and Tracking
• Configurable Azimuth FOV up to 180°
• Configurable radar scanning zone
Up to 30m for Vulnerable Road Users
Up to 50m for Motor Vehicles
• Configurable Sensor position and tilt
• Detection of Position,
Relative Speed,
Direction of Motion,
Ground Speed
Static Objects
• Blind Spot Detection – BSD
• Rear Pre-Crash – RPC
• Frontal Collision Warning System – FCWS
• Automated Parking Assist – ADA
• Rear – Auto Emergency Braking Sensors
• Rear Cross Traffic Alert – RCTA
• Pedestrian Bike Detection
• Safe Exit Assistant – SEA
• Automated Guided Vehicle Sensor
