mmWave Radars
Moving Off Information System (MOIS)

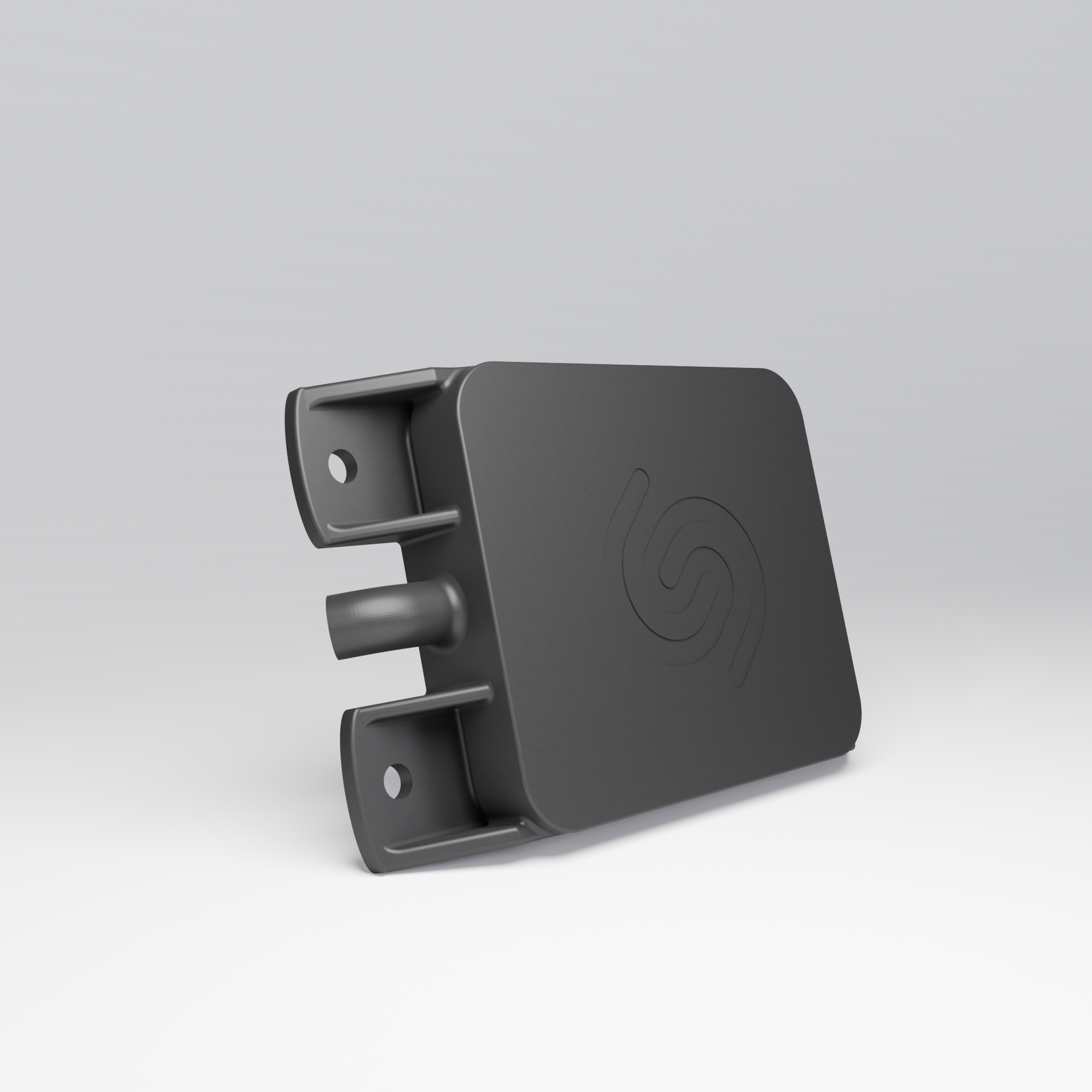

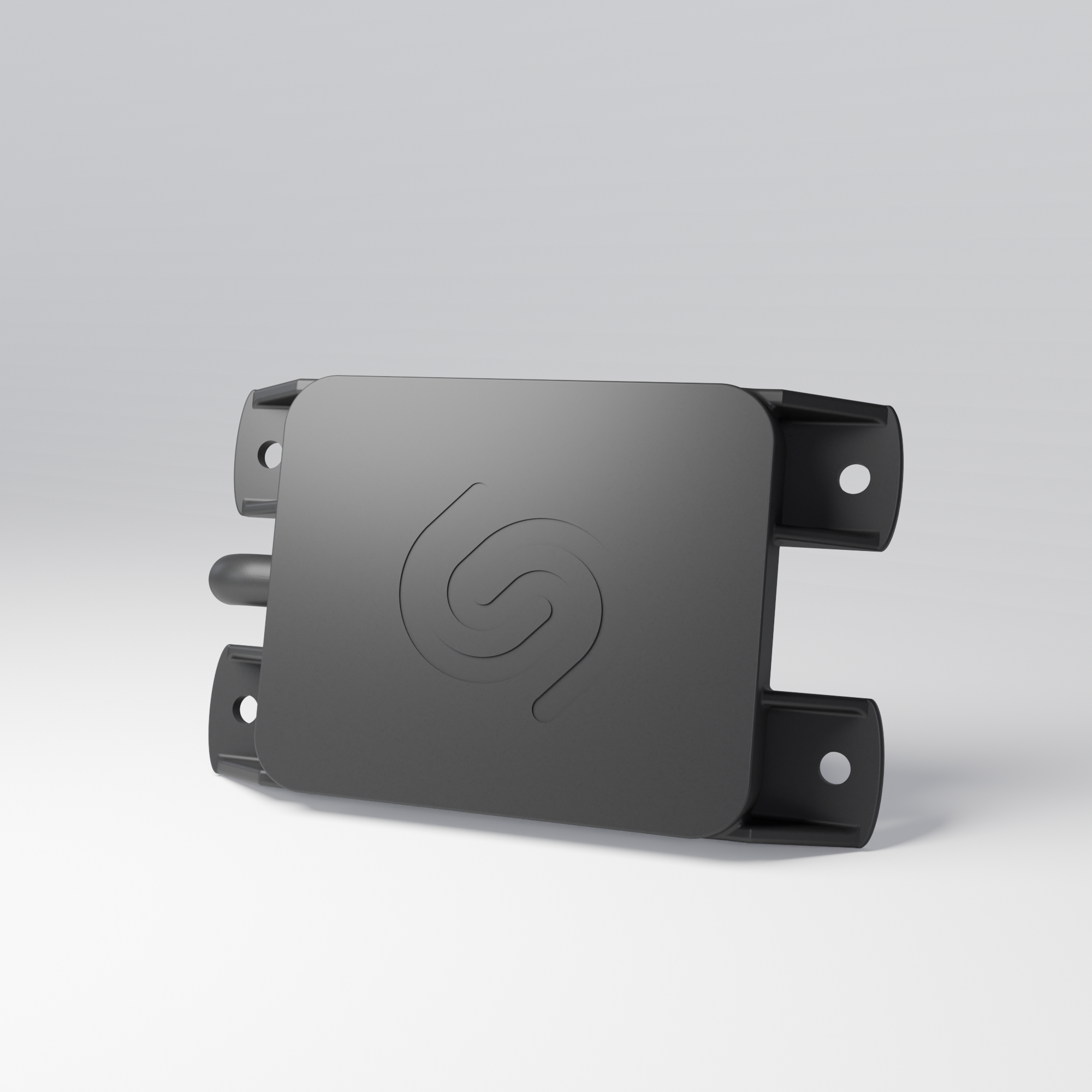

SAYKAL Radar Sensor; It is an innovative, robust, and reliable electronic sensing unit developed for the automotive industry and containing new-generation technologies. It is customized for out-of-cabin applications. AP003 is a high-performance short-range radar sensor operating in the 76-81 GHz band for various premium backward & forward-looking applications. In particular, the use of heavy vehicles in traffic and other areas open to pedestrians poses a risk to vulnerable road users such as pedestrians and cyclists. It creates a warning according to the distance for the pedestrians or obstacles in front of the vehicle and in the area where there is a risk of collision. It allows you to manage risk or create aids such as braking by varying the amount of warning with adjustable distances.
Hardware Features
• 7V – 40V DC / 4.5A
• Reverse Connection Protection AUTOMOTIVE
• 16 Megabit extended storage / 64k FRAM Optimal Reliability
• RS485
• CAN / FDCAN
• Temperature Sensing
• 2 x Output & 4 x Input
Software Features
• Firmware Update with CAN Bus
• High Precision
• SAE J1939 Support
• UDS Enabled
• Object Detection and Tracking
• Configurable Azimuth FOV up to 180°
• Configurable radar scanning zoneUp to 50m
• Configurable Sensor position and tilt
• Detection of Position,
Relative Speed,
Direction of Motion,
Ground Speed
Static Objects
• Blind Spot Detection – BSD
• Reversing Detection System – RDS
• Moving Off Information System – MOIS
• Rear Pre-Crash – RPC
• Frontal Collision Warning System – FCWS
• Automated Parking Assist – ADA
• Rear – Auto Emergency Braking Sensors
• Rear Cross Traffic Alert – RCTA
• Pedestrian Bike Detection
• Safe Exit Assistant – SEA
